Brand Name : XH
Model Number : XH-Welder
Certification : CE,RoHS,ISO9001 certificates
Place of Origin : Shandong, China
MOQ : 1 set
Price : USD2115-4999/Set
Payment Terms : T/T,Western Union
Delivery Time : 10-15 working days
Packaging Details : Wooden box
Laser Source : Raycus/Max (Optional)
Laser Type : Fiber Laser
Type of Welding Head : Single/double wobble head(optional)
Suitable Material : aluminum, carbon steel, stainless steel, galvanized sheet, etc
Power Supply : 220V ± 10%,380V ± 10%/50/60 Hz AC
Welding Thickness Range : 0.5-6mm
Cooling Type : air-cooling
Product Features:
4-in-1 Functionality: Welding, Cutting, Cleaning, and Seam Cleaning

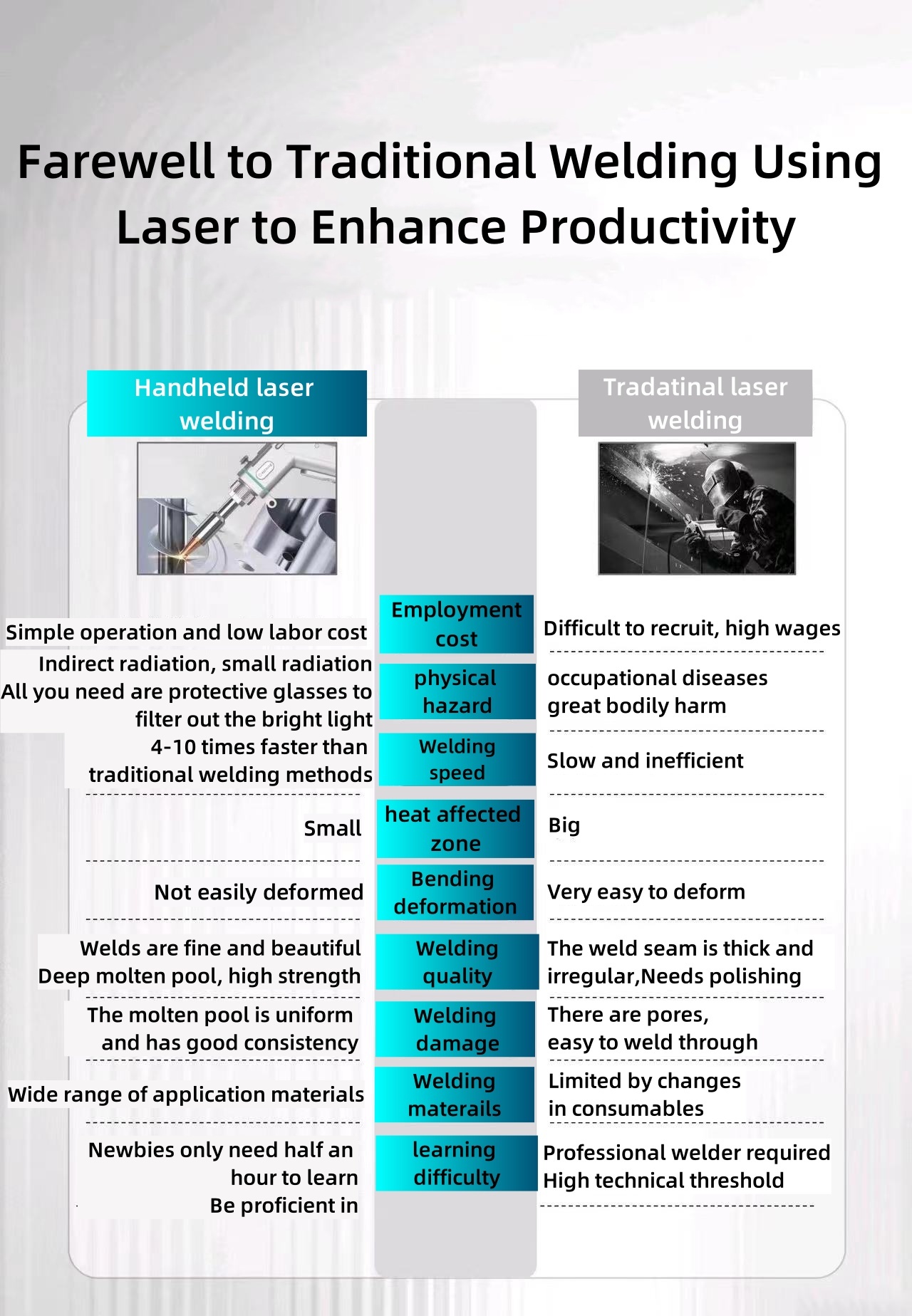

Superior to Traditional Welding: Laser welding offers faster speed, higher efficiency, improved safety, and is more environmentally friendly.
User-Friendly Design: Easy to install, lightweight, and energy-efficient
This fiber laser welding machine is suitable for a wide range of materials, including stainless steel, carbon steel, alloy steel, spring steel, copper plates, aluminum plates, gold, silver, titanium, and more. It is widely applied across various industries such as advertising, high and low voltage electrical cabinet manufacturing, textile machinery parts, kitchen appliances, automotive components, machinery, elevators, electrical accessories, spring coils, metro line parts, and other industrial sectors.
Technical Parameters
Model | XH1000 | XH1500 | XH2000 | XH3000 |
Power | 1000W | 1500W | 2000W | 3000W |
Welding Thickness | 0.5-1.5mm | 0.5-2mm | 0.5-3mm | 0.5-4mm |
Laser Type | Fiber Laser | |||
Laser Source Brand | Raycus/MAX/JPT(optional) | |||
Control System | Chaoqiang Weiye | |||
Water Chiller | Hanli/ S&A (optional) | |||
Laser wavelength | 1070nm±10nm | |||
Power Supply | 220V/1P for 1000W and 1500W 380V/3P for 2000W and 3000W | |||
Gross weight | 35KG | |||
Machine Warranty | Lifetime Warranty |
![]() |
Air-Cooled Portable 1500W 2000W Laser Welder Laser Welding Machine For Stainless Steel Copper Aluminum Images |
